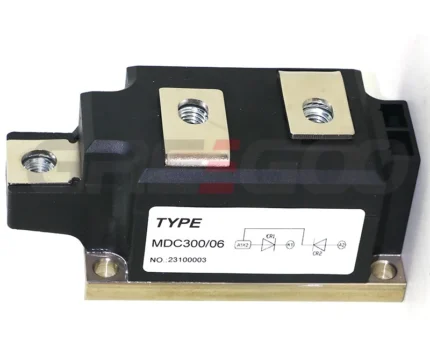

Çift diyot modülü 800A 1000A 1200A
| Sembol | Anlam |
| M | Modül |
| D | Doğrultucu diyot |
| C | C – seri, A – ortak anot, K – ortak katot, X – anti-paralel |
| 26 | Ortalama akım |
| 12 | Voltaj kodu: kod x 100 = VRRM |
| Örn. | MDC26-12, Çift diyot modülü, seri bağlantı, 26A, 1600V. |
| Model No. | EĞER(AV) | VRRM | Paket |
| MDC800-06 | 800A | 600V | B76 |
| MDC800-10 | 800A | 1000V | B76 |
| MDC800-12 | 800A | 1200V | B76 |
| MDC800-16 | 800A | 1600V | B76 |
| MDC800-18 | 800A | 1800V | B76 |
| MDC1000-06 | 1000A | 600V | B76 |
| MDC1000-10 | 1000A | 1000V | B76 |
| MDC1000-12 | 1000A | 1200V | B76 |
| MDC1000-16 | 1000A | 1600V | B76 |
| MDC1000-18 | 1000A | 1800V | B76 |
| MDC1200-06 | 1200A | 600V | B76 |
| MDC1200-10 | 1200A | 1000V | B76 |
| MDC1200-12 | 1200A | 1200V | B76 |
| MDC1200-16 | 1200A | 1600V | B76 |
| MDC1200-18 | 1200A | 1800V | B76 |
| MDK800-06 | 800A | 600V | B76 |
| MDK800-10 | 800A | 1000V | B76 |
| MDK800-12 | 800A | 1200V | B76 |
| MDK800-16 | 800A | 1600V | B76 |
| MDK800-18 | 800A | 1800V | B76 |
| MDK1000-06 | 1000A | 600V | B76 |
| MDK1000-10 | 1000A | 1000V | B76 |
| MDK1000-12 | 1000A | 1200V | B76 |
| MDK1000-16 | 1000A | 1600V | B76 |
| MDK1000-18 | 1000A | 1800V | B76 |
| MDK1200-06 | 1200A | 600V | B76 |
| MDK1200-10 | 1200A | 1000V | B76 |
| MDK1200-12 | 1200A | 1200V | B76 |
| MDK1200-16 | 1200A | 1600V | B76 |
| MDK1200-18 | 1200A | 1800V | B76 |
| MDA800-06 | 800A | 600V | B76 |
| MDA800-10 | 800A | 1000V | B76 |
| MDA800-12 | 800A | 1200V | B76 |
| MDA800-16 | 800A | 1600V | B76 |
| MDA800-18 | 800A | 1800V | B76 |
| MDA1000-06 | 1000A | 600V | B76 |
| MDA1000-10 | 1000A | 1000V | B76 |
| MDA1000-12 | 1000A | 1200V | B76 |
| MDA1000-16 | 1000A | 1600V | B76 |
| MDA1000-18 | 1000A | 1800V | B76 |
| MDA1200-06 | 1200A | 600V | B76 |
| MDA1200-10 | 1200A | 1000V | B76 |
| MDA1200-12 | 1200A | 1200V | B76 |
| MDA1200-16 | 1200A | 1600V | B76 |
| MDA1200-18 | 1200A | 1800V | B76 |
| MDX800-06 | 800A | 600V | B76 |
| MDX800-10 | 800A | 1000V | B76 |
| MDX800-12 | 800A | 1200V | B76 |
| MDX800-16 | 800A | 1600V | B76 |
| MDX800-18 | 800A | 1800V | B76 |
| MDX1000-06 | 1000A | 600V | B76 |
| MDX1000-10 | 1000A | 1000V | B76 |
| MDX1000-12 | 1000A | 1200V | B76 |
| MDX1000-16 | 1000A | 1600V | B76 |
| MDX1000-18 | 1000A | 1800V | B76 |
| MDX1200-06 | 1200A | 600V | B76 |
| MDX1200-10 | 1200A | 1000V | B76 |
| MDX1200-12 | 1200A | 1200V | B76 |
| MDX1200-16 | 1200A | 1600V | B76 |
| MDX1200-18 | 1200A | 1800V | B76 |
