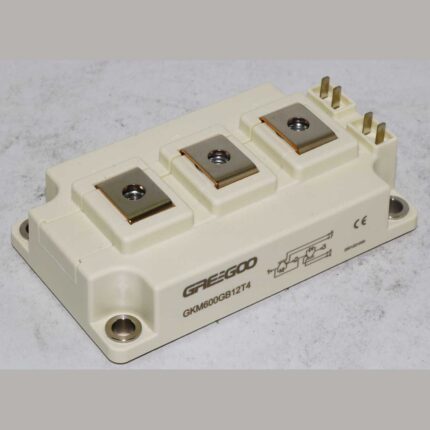

GKM400GB12T4
GKM serisi IGBT Modülleri 600V 650V 1200V 1700V
IGBT Modülü (Insulated Gate Bipolar Transistor), birçok tip endüstriyel ekipmanda inverter kullanımı için gerekli bir cihazdır. Çeşitli topolojilerdeki IGBT modülleri, akım aralığı I Cnom 25A ile 1400A ve gerilim sınıfı V CES 600V ile 1700V arasında olan devrelerde kullanılır.
IGBT Modülleri, cihazın mevcut ekipmana kolayca entegre edilmesini sağlayan standart bir endüstriyel kasada yer alır. Mevcut topolojiler arasında yarım köprü, tek anahtar, altı paket, 3 seviye ve daha fazlası bulunur ve her uygulama alanını kapsar. Bir IGBT güç modülü bir anahtar işlevi görür ve elektrik gücünü son derece hızlı ve yüksek enerji verimliliğiyle açıp kapatmak için kullanılabilir.
IGBT invertör modülü, motorlar için değişken hızlı sürücülerin, AC invertör sürücülerinin, UPS’lerin, elektronik kaynak makinelerinin, kesintisiz güç kaynaklarının ve diğerlerinin güç dönüştürücüleri için anahtarlama elemanları olarak kullanılır. IGBT, bir güç MOSFET’inin yüksek hızlı anahtarlama performansını bir bipolar transistörün yüksek voltaj ve yüksek akım işleme yetenekleriyle birleştiren bir yarı iletken cihazdır.
IGBT güç modülü, anahtarlama, sıcaklık, ağırlık ve maliyet performansını iyileştirme yeteneği nedeniyle yüksek güç uygulamaları için tercih edilen cihaz haline geliyor.
Tip | IGBT | Diyot | Dava | |||||||
Ben biliyorum | l c | V CES | V CE(uydu) | E üzerinde | E kapalı | EĞER | VF | E rr | ||
A | A | V | V | mJ | mJ | A | V | mJ | ||
GKM145GB066D | 150 | 195 | 600 | 1.46 | 8.5 | 5.5 | 150 | 1.40 | 3.5 | 2 |
GKM195GB066D | 200 | 265 | 600 | 1.46 | 14 | 8 | 200 | 1.40 | 5.6 | |
GKM300GB066D | 300 | 390 | 600 | 1.45 | 7.5 | 11.5 | 350 | 1.38 | 10.5 | 3 |
GKM400GB066D | 400 | 500 | 600 | 1.45 | 8 | 16 | 450 | 1.40 | 14 | |
GKM600GB066D | 600 | 760 | 600 | 1.45 | 7.5 | 29.5 | 700 | 1.40 | 25 | |
GKM200GARL066T | 200 | 280 | 600 | 1.45 | 2.24 | 7.89 | 270 | 1.45 | 4 | 5 |
GKM300GARL066T | 300 | 393 | 600 | 1.45 | 3.5 | 10.1 | 421 | 1.54 | 4 | |
GKM400GARL066T | 400 | 504 | 600 | 1.45 | 4.48 | 15.78 | 421 | 1.54 | 8 | |
GKM150ML1066TAT | 150 | 200 | 600 | 1.45 | 1.7 | 5.1 | 200 | 1.35 | 2 | 5 |
GKM200MLI066TAT | 200 | 280 | 600 | 1.45 | 2.53 | 6.82 | 270 | 1.40 | 4 | |
GKM300MLI066TAT | 300 | 400 | 600 | 1.45 | 3.5 | 10.1 | 324 | 1.35 | 4 | |
GKM195GAL07E3 | 200 | 266 | 650 | 1.46 | 6.3 | 8.3 | 217 | 1.39 | 4.5 | 2 |
GKM300GAL07E3 | 300 | 394 | 650 | 1.45 | 3 | 14 | 335 | 1.40 | 6.4 | 3 |
GKM600GAL07E3 | 600 | 852 | 650 | 1.45 | 20 | 37 | 812 | 1.40 | 9.1 | |
GKM195GAR07E3 | 200 | 266 | 650 | 1.46 | 6.3 | 8.3 | 217 | 1.39 | 4.5 | 2 |
GKM300GAR07E3 | 300 | 394 | 650 | 1.45 | 3 | 14 | 335 | 1.40 | 6.4 | 3 |
GKM600GAR07E3 | 600 | 852 | 650 | 1.45 | 20 | 37 | 812 | 1.40 | 9.1 | |
GKM195GB07E3 | 200 | 266 | 650 | 1.46 | 6.3 | 8.3 | 217 | 1.39 | 4.5 | 2 |
GKM300GB07E3 | 300 | 394 | 650 | 1.45 | 4.7 | 13.6 | 335 | 1.40 | 6.4 | 3 |
GKM400GB07E3 | 400 | 506 | 650 | 1.45 | 4 | 17 | 447 | 1.39 | 12 | |
GKM600GB07E3 | 600 | 852 | 650 | 1.45 | 20 | 37 | 812 | 1.40 | 9.1 | |
GKM600GA125D | 400 | 580 | 1200 | 3.30 | 30 | 22 | 500 | 2.00 | 24 | 4 |
GKM800GA125D | 600 | 760 | 1200 | 3.20 | 88 | 48 | 720 | 2.30 | 28 | |
GKM200GAL125D | 150 | 200 | 1200 | 3.30 | 14 | 8 | 200 | 2.06 | 8 | 3 |
GKM400GAL125D | 300 | 400 | 1200 | 3.30 | 17 | 18 | 390 | 2.06 | 16 | |
GKM200GAR125D | 150 | 200 | 1200 | 3.30 | 14 | 8 | 200 | 2.06 | 8 | 3 |
GKM400GAR125D | 300 | 400 | 1200 | 3.30 | 17 | 18 | 390 | 2.06 | 16 | |
GKM100GB125DN | 75 | 100 | 1200 | 3.30 | 9 | 3.5 | 95 | 2.06 | 4 | 2N |
GKM200GB125D | 150 | 200 | 1200 | 3.30 | 14 | 8 | 200 | 2.06 | 8 | 3 |
GKM300GB125D | 200 | 300 | 1200 | 3.30 | 16 | 11 | 260 | 2.00 | 13 | |
GKM400GB125D | 300 | 400 | 1200 | 3.30 | 17 | 18 | 390 | 2.06 | 16 | |
GKM25GAH125D | 25 | 39 | 1200 | 3.20 | 3.9 | 1.6 | 47 | 2.13 | 1.1 | 6 |
GKM600GA126D | 400 | 660 | 1200 | 1.70 | 39 | 64 | 490 | 1.60 | 41 | 4 |
GKM800GA126D | 600 | 910 | 1200 | 1.70 | 65 | 95 | 703 | 1.60 | 59 | |
GKM195GAL126D | 150 | 220 | 1200 | 1.71 | 16 | 24.5 | 143 | 2.00 | 5.8 | 2 |
GKM200GAL126D | 150 | 260 | 1200 | 1.71 | 18 | 24 | 200 | 1.60 | 18 | 3 |
GKM400GAL126D | 300 | 470 | 1200 | 1.69 | 29 | 48 | 352 | 1.60 | 27 | |
GKM600GAL126D | 400 | 660 | 1200 | 1.70 | 39 | 64 | 490 | 1.60 | 41 | |
GKM195GB126D | 150 | 220 | 1200 | 1.71 | 16 | 24.5 | 143 | 2.00 | 5.8 | 2 |
GKM200GB126D | 150 | 260 | 1200 | 1.71 | 18 | 24 | 200 | 1.60 | 18 | 3 |
GKM300GB126D | 200 | 310 | 1200 | 1.70 | 21 | 33 | 250 | 1.60 | 18 | |
GKM400GB126D | 300 | 470 | 1200 | 1.69 | 29 | 48 | 352 | 1.60 | 27 | |
GKM600GB126D | 400 | 660 | 1200 | 1.70 | 39 | 64 | 490 | 1.60 | 41 | |
GKM300GA12V | 300 | 420 | 1200 | 1.84 | 23 | 33 | 353 | 2.17 | 21 | 4 |
GKM400GA12V | 400 | 612 | 1200 | 1.74 | 39 | 42 | 440 | 2.20 | 26 | |
GKM600GA12V | 600 | 908 | 1200 | 1.75 | 76 | 76 | 707 | 2.14 | 43 | |
GKM150GAL12V | 150 | 231 | 1200 | 1.75 | 13.5 | 14.2 | 189 | 2.14 | 8.5 | 2 |
GKM200GAL12VL2 | 150 | 299 | 1200 | 1,86 | 24 | 22 | 189 | 2.14 | 8.5 | |
GKM400GAL12V | 400 | 612 | 1200 | 1.74 | 39 | 42 | 440 | 2.20 | 26 | 3 |
GKM150GAR12V | 150 | 231 | 1200 | 1.75 | 13.5 | 14.2 | 189 | 2.14 | 8.5 | 2 |
GKM400GAR12V | 400 | 612 | 1200 | 1.74 | 39 | 42 | 440 | 2.20 | 26 | 3 |
GKM50GB12V | 50 | 77 | 1200 | 1.84 | 4.9 | 4.5 | 65 | 2.22 | 2.8 | 2 |
GKM75GB12V | 75 | 114 | 1200 | 1.84 | 6.7 | 7.1 | 97 | 2.17 | 4.2 | |
GKM100GB12V | 100 | 159 | 1200 | 1.75 | 10.7 | 8.7 | 121 | 2.20 | 5.7 | |
GKM150GB12V | 150 | 231 | 1200 | 1.75 | 13.5 | 14.2 | 189 | 2.14 | 8.5 | |
GKM150GB12VG | 150 | 222 | 1200 | 1,86 | 10 | 16.5 | 187 | 2.17 | 11 | 3 |
GKM200GB12V | 200 | 311 | 1200 | 1,76 | 14 | 22 | 229 | 2.20 | 13 | |
GKM300GB12V | 300 | 420 | 1200 | 1.84 | 23 | 33 | 353 | 2.17 | 21 | |
GKM400GB12V | 400 | 612 | 1200 | 1.74 | 39 | 42 | 440 | 2.20 | 26 | |
GKM300GA12E4 | 300 | 422 | 1200 | 1.85 | 23.4 | 35 | 353 | 2.17 | 22.2 | 4 |
GKM400GA12E4 | 400 | 616 | 1200 | 1.80 | 28 | 59 | 461 | 2.20 | 37 | |
GKM600GA12E4 | 600 | 913 | 1200 | 1.80 | 30 | 77 | 707 | 2.14 | 39 | |
GKM900GA12E4 | 900 | 1305 | 1200 | 1.83 | 130 | 121 | 871 | 2.31 | 53 | |
GKM600GAE12E4 | 600 | 860 | 1200 | 1.80 | 81 | 83 | 54 | 14.62 | 35.5 | 5 |
GKM200GAL12E4 | 200 | 313 | 1200 | 1.80 | 21 | 27 | 229 | 2.20 | 13 | 3 |
GKM300GAL12E4 | 300 | 422 | 1200 | 1.85 | 27 | 39 | 353 | 2.17 | 23 | |
GKM400GAL12E4 | 400 | 616 | 1200 | 1.80 | 33 | 56 | 461 | 2.20 | 30.5 | |
GKM200GAR12E4 | 200 | 313 | 1200 | 1.80 | 21 | 27 | 229 | 2.20 | 13 | 3 |
GKM300GAR12E4 | 300 | 422 | 1200 | 1.85 | 27 | 39 | 353 | 2.17 | 23 | |
GKM400GAR12E4 | 400 | 616 | 1200 | 1.80 | 33 | 56 | 461 | 2.20 | 30.5 | |
GKM200GB12E4 | 200 | 313 | 1200 | 1.80 | 21 | 27 | 229 | 2.20 | 13 | 3 |
GKM300GB12E4 | 300 | 422 | 1200 | 1.85 | 27 | 39 | 353 | 2.17 | 23 | |
GKM400GB12E4 | 400 | 616 | 1200 | 1.80 | 33 | 56 | 461 | 2.20 | 30.5 | |
GKM450GB12E4 | 450 | 700 | 1200 | 1.84 | 32 | 60 | 461 | 2.31 | 28 | |
GKM450GB12E4D1 | 450 | 700 | 1200 | 1.84 | 28 | 58 | 461 | 2.04 | 31 | |
GKM600GB12E4 | 600 | 860 | 1200 | 1.80 | 30 | 77 | 623 | 2.28 | 39 | |
GKM450GM12E4 | 450 | 700 | 1200 | 1.84 | 32 | 60 | 461 | 2.31 | 28 | 3 |
GKM450GM12E4D1 | 450 | 699 | 1200 | 1.84 | 28 | 58 | 623 | 2.04 | 31 | |
GKM600GM12E4 | 600 | 860 | 1200 | 1.80 | 30 | 77 | 623 | 2.28 | 39 | |
GKM300GA12T4 | 300 | 422 | 1200 | 1.85 | 23.4 | 26 | 353 | 2.17 | 22.2 | 4 |
GKM400GA12T4 | 400 | 616 | 1200 | 1.80 | 28 | 44 | 461 | 2.20 | 37 | |
GKM600GA12T4 | 600 | 913 | 1200 | 1.80 | 74 | 63 | 707 | 2.14 | 38 | |
GKM50GAL12T4 | 50 | 81 | 1200 | 1.85 | 5.5 | 4.5 | 0 | 2.22 | 3.6 | 2 |
GKM100GAL12T4 | 100 | 160 | 1200 | 1.80 | 15 | 10.2 | 121 | 2.20 | 5.9 | |
GKM150GAL12T4 | 150 | 232 | 1200 | 1.81 | 19.2 | 15.8 | 189 | 2.14 | 13 | |
GKM200GAL12T4 | 200 | 313 | 1200 | 1.80 | 21 | 20 | 229 | 2.20 | 13 | 3 |
GKM300GAL12T4 | 300 | 422 | 1200 | 1.85 | 27 | 29 | 353 | 2.17 | 23 | |
GKM400GAL12T4 | 400 | 616 | 1200 | 1.80 | 33 | 42 | 461 | 2.20 | 30.5 | |
GKM600GAL12T4 | 600 | 860 | 1200 | 1.80 | 33 | 70 | 623 | 2.28 | 40 | |
GKM150GAR12T4 | 150 | 232 | 1200 | 1.81 | 19.2 | 15.8 | 189 | 2.14 | 13 | 2 |
GKM400GAR12T4 | 400 | 616 | 1200 | 1.80 | 33 | 42 | 461 | 2.20 | 30.5 | 3 |
GKM600GAR12T4 | 600 | 860 | 1200 | 1.80 | 33 | 70 | 623 | 2.28 | 40 | |
GKM50GB12T4 | 50 | 81 | 1200 | 1.85 | 5.5 | 4.5 | 65 | 2.22 | 3.8 | 2 |
GKM75GB12T4 | 75 | 115 | 1200 | 1.85 | 11 | 6.9 | 97 | 2.17 | 4.7 | |
GKM100GB12T4 | 100 | 160 | 1200 | 1.80 | 15 | 10.2 | 121 | 2.20 | 5.9 | |
GKM150GB12T4 | 150 | 232 | 1200 | 1.81 | 19.2 | 15.8 | 189 | 2.14 | 13 | |
GKM100GB12T4G | 100 | 154 | 1200 | 1.90 | 16.1 | 8.6 | 118 | 2.22 | 6 | 3 |
GKM150GB12T4G | 150 | 223 | 1200 | 1.85 | 18.7 | 14.1 | 183 | 2.17 | 9 | |
GKM200GB12T4 | 200 | 313 | 1200 | 1.80 | 21 | 20 | 229 | 2.20 | 13 | 3 |
GKM300GB12T4 | 300 | 422 | 1200 | 1.85 | 27 | 29 | 353 | 2.17 | 23 | |
GKM400GB12T4 | 400 | 616 | 1200 | 1.80 | 33 | 42 | 461 | 2.20 | 30.5 | |
GKM450GB12T4 | 450 | 699 | 1200 | 1.84 | 32 | 49 | 461 | 2.31 | 28 | |
GKM450GB12T4D1 | 450 | 699 | 1200 | 1.84 | 28 | 48 | 623 | 2.04 | 32 | |
GKM600GB12T4 | 600 | 860 | 1200 | 1.80 | 33 | 70 | 623 | 2.28 | 40 | |
GKM150GM12T4G | 150 | 229 | 1200 | 1.85 | 19.2 | 15.8 | 187 | 2.17 | 13 | 3 |
GKM200GM12T4 | 200 | 313 | 1200 | 1.80 | 21 | 20 | 229 | 2.20 | 13 | |
GKM300GM12T4 | 300 | 422 | 1200 | 1.85 | 27 | 29 | 353 | 2.17 | 23 | |
GKM400GM12T4 | 400 | 616 | 1200 | 1.80 | 33 | 42 | 461 | 2.20 | 30.5 | |
GKM300GBD12T4 | 300 | 422 | 1200 | 1.85 | 27 | 29 | 56 | 2.41 | 30.5 | 3 |
GKM100GAL12F4 | 100 | 153 | 1200 | 2.05 | 6.6 | 8 | 111 | 2.55 | 6.3 | 2 |
GKM400GAL12F4 | 400 | 548 | 1200 | 2.06 | 28 | 32 | 402 | 2.55 | 18.5 | 3 |
GKM100GAR12F4 | 100 | 153 | 1200 | 2.05 | 6.6 | 8 | 111 | 2.55 | 6.3 | 2 |
GKM400GAR12F4 | 400 | 548 | 1200 | 2.06 | 28 | 32 | 402 | 2.55 | 18.5 | 3 |
GKM75GB12F4 | 75 | 113 | 1200 | 2.08 | 6.8 | 5.3 | 98 | 2.43 | 3.7 | 2 |
GKM100GB12F4 | 100 | 153 | 1200 | 2.05 | 6.6 | 8 | 111 | 2.55 | 6.3 | |
GKM150GB12F4 | 150 | 201 | 1200 | 2.05 | 14.5 | 12 | 174 | 2.43 | 6 | |
GKM150GB12F4G | 150 | 221 | 1200 | 2.05 | 7.8 | 10.8 | 197 | 2.43 | 8.9 | 3 |
GKM200GB12F4 | 200 | 312 | 1200 | 2.06 | 7.5 | 15.7 | 227 | 2.55 | 9.7 | |
GKM300GB12F4 | 300 | 380 | 1200 | 2.06 | 16.5 | 24 | 334 | 2.43 | 16 | |
GKM400GB12F4 | 400 | 548 | 1200 | 2.06 | 28 | 32 | 402 | 2.55 | 18.5 | |
GKM600GA176D | 400 | 660 | 1700 | 2.00 | 255 | 155 | 600 | 1.60 | 102 | 4 |
GKM800GA176D | 600 | 830 | 1700 | 2.00 | 335 | 245 | 630 | 1.60 | 155 | |
GKM145GAL176D | 100 | 160 | 1700 | 2.00 | 60 | 38 | 140 | 1.60 | 27.5 | 2 |
GKM200GAL176D | 150 | 260 | 1700 | 2.01 | 93 | 58 | 210 | 1.70 | 31 | 3 |
GKM400GAL176D | 300 | 432 | 1700 | 1,99 | 170 | 118 | 440 | 1.70 | 78 | |
GKM400GAR176D | 300 | 432 | 1700 | 1,99 | 170 | 118 | 440 | 1.70 | 78 | 3 |
GKM75GB176D | 50 | 80 | 1700 | 2.00 | 25 | 18 | 80 | 1.70 | 14.5 | 2 |
GKM100GB176D | 75 | 125 | 1700 | 1.98 | 44 | 28.5 | 100 | 1.60 | 21.4 | |
GKM145GB176D | 100 | 160 | 1700 | 2.00 | 60 | 38 | 140 | 1.60 | 27.5 | |
GKM200GB176D | 150 | 260 | 1700 | 2.01 | 93 | 58 | 210 | 1.70 | 31 | 3 |
GKM400GB176D | 300 | 432 | 1700 | 1,99 | 170 | 118 | 440 | 1.70 | 78 | |
GKM600GA17E4 | 600 | 972 | 1700 | 1.90 | 258 | 246 | 629 | 1.98 | 132 | 4 |
GKM100GAL17E4 | 100 | 164 | 1700 | 1.90 | 43 | 39 | 113 | 2.00 | 26 | 2 |
GKM200GAL17E4 | 200 | 321 | 1700 | 1.90 | 69 | 79 | 213 | 2.00 | 45 | 3 |
GKM400GAL17E4 | 400 | 614 | 1700 | 1.92 | 157 | 180 | 443 | 2.00 | 130 | |
GKM100GAR17E4 | 100 | 164 | 1700 | 1.90 | 43 | 39 | 113 | 2.00 | 26 | 2 |
GKM200GAR17E4 | 200 | 321 | 1700 | 1.90 | 69 | 79 | 213 | 2.00 | 45 | 3 |
GKM400GAR17E4 | 400 | 614 | 1700 | 1.92 | 157 | 180 | 443 | 2.00 | 130 | |
GKM75GB17E4 | 75 | 125 | 1700 | 1.93 | 30 | 29 | 88 | 2.00 | 21 | 2 |
GKM100GB17E4 | 100 | 164 | 1700 | 1.90 | 43 | 39 | 113 | 2.00 | 26 | |
GKM150GB17E4 | 150 | 248 | 1700 | 1.90 | 67 | 59 | 169 | 1.98 | 32 | |
GKM150GB17E4G | 150 | 242 | 1700 | 1.90 | 39 | 59 | 163 | 2.00 | 33 | 3 |
GKM200GB17E4 | 200 | 321 | 1700 | 1.90 | 69 | 79 | 213 | 2.00 | 45 | |
GKM300GB17E4 | 300 | 476 | 1700 | 1.91 | 88 | 121 | 314 | 2.00 | 77 | |
GKM400GB17E4 | 400 | 614 | 1700 | 1.92 | 157 | 180 | 443 | 2.00 | 130 | 3 |
GKM500GB17E4 | 500 | 780 | 1700 | 1.90 | 135 | 210 | 561 | 1,99 | 130 | |
GKM400GM17E4 | 400 | 614 | 1700 | 1.92 | 157 | 180 | 443 | 2.00 | 130 | 3 |
